Are you Looking for wafer shipping cassettes & carriers?

Nexteck supplies a wide variety of high quality Wafer Carriers and Wafer Cassettes.

✔ Metal Carriers ✔ Custom Cassettes ✔ SEMI standard

1.What is a wafer cassette?

Wafer cassettes are used to transport and store wafers during semiconductor manufacturing operations. Also referred to as wafer carriers, they are designed to house or carry several wafers of the same size and are available in a range of materials to support specific applications, such as thermal processing.

2.Product Description

For general process. Wafer carrier and used to transfer between station and station. Provide suitable characteristics of the polymer composite material according to customer’s needs. It can collocation with airtight storage box to protect wafer.

․ESD material are provided.

․Use to transfer inside factory

․Able to go with airtight Storage Box to protect wafer

3.Product Features
Material	Degree of temperature resistance	Property	Application
PFA Cassette	200~220℃	Strong acid, strong hydrofluoric acid, strong base resistant	For acid & base process
PP Cassette	40~60℃	Pros: Light weight, for welding Cons: Distort easily	NEXFF29-00
PEEK Cassette	120℃	High hardness, not easy to distort, high temperature resistant
PC Cassette	80~100℃	Light weight, able for welding
PEI Cassette	130~150℃	Wear resistant, anti-static

4.Product Specifications
Product name	8" Wafer Cassette	Product
Part number	NXT-C200
Dimension	235(L) x 214(W) x 219(H)mm
Weight	900g
Capacity	25 PCS
Wafer size	8 inch (Ø200mm) Thickness 0.5mm~0.7mm Wafer
Material	ESD Resin

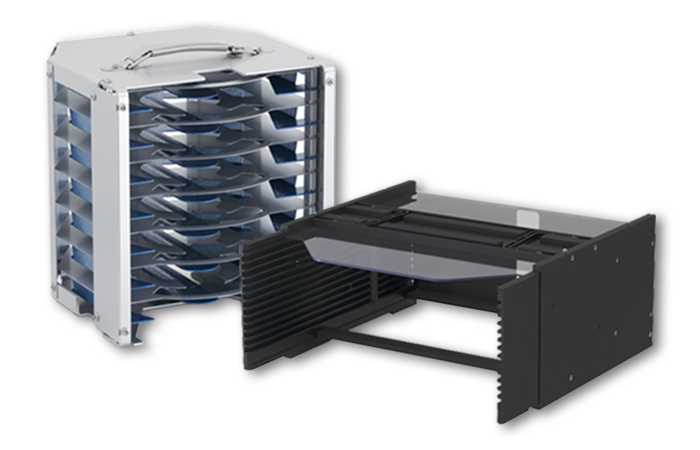

Increased cleanliness standards and robotic handling in semiconductor wafer fabs require a non-contaminating, stable wafer cassette with high mechanical interface capability. Our wafer cassettes & shipping carriers are available for any application in different materials and sizes: including hard clear anodized aluminum, and electro polished nickel. We offer high vacuum metal cassettes and 316SST stainless Steel for bake-out processes up to 550˚C.
